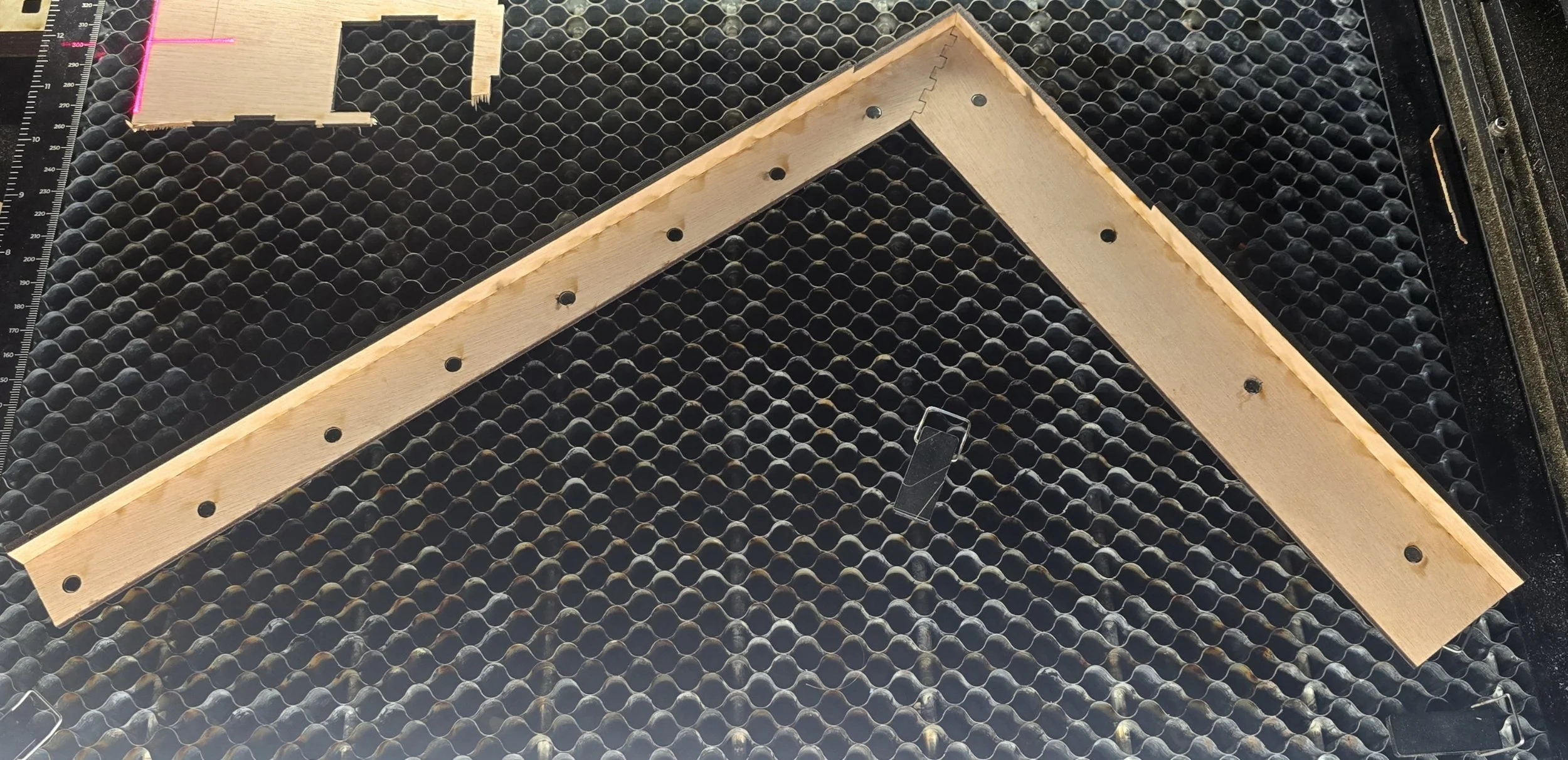

- Stackable alignment jig block pieces
- Designed to lock against one side of the xTool S1 honeycomb for stability

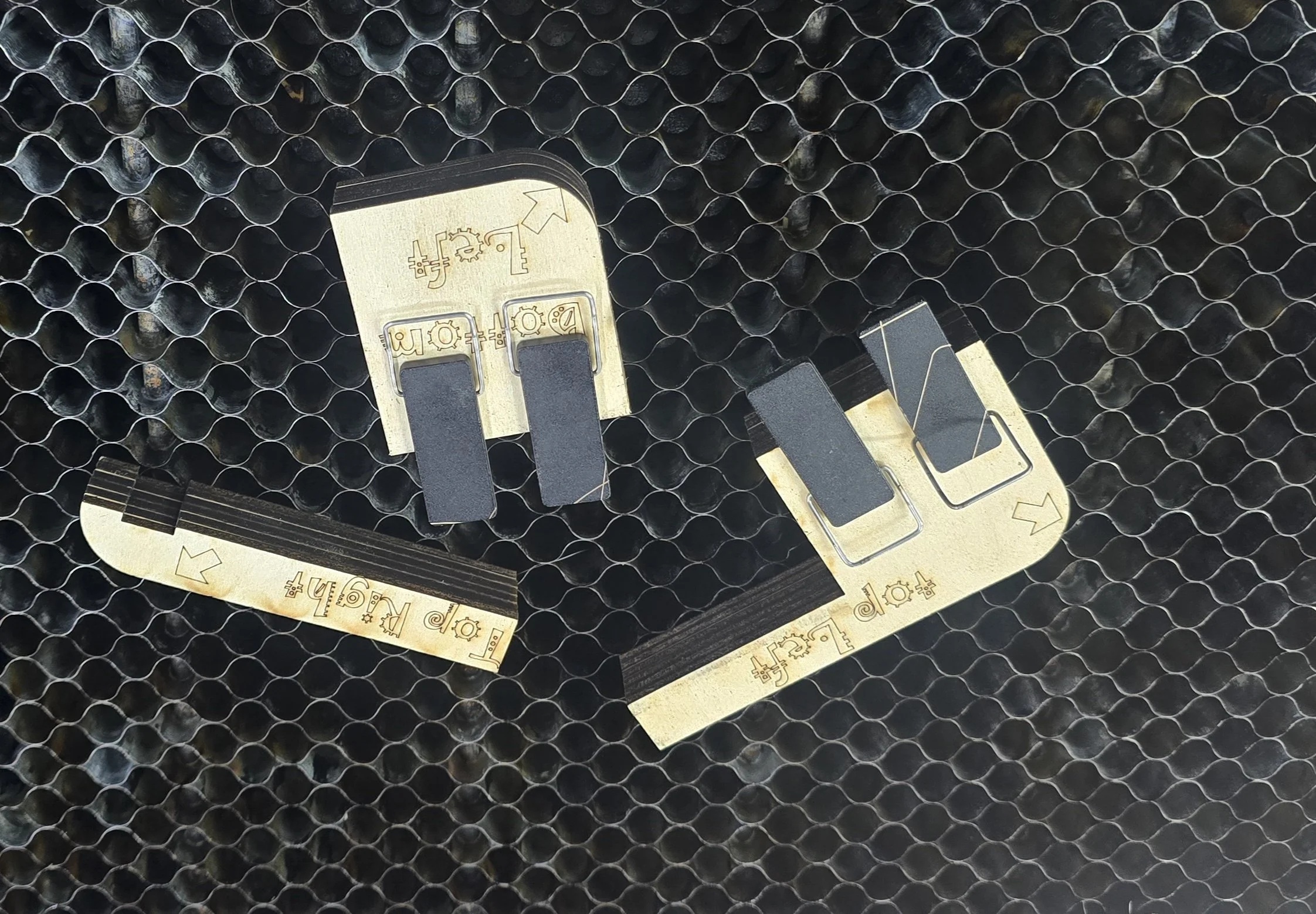

- Reversible blocks for top or bottom orientation

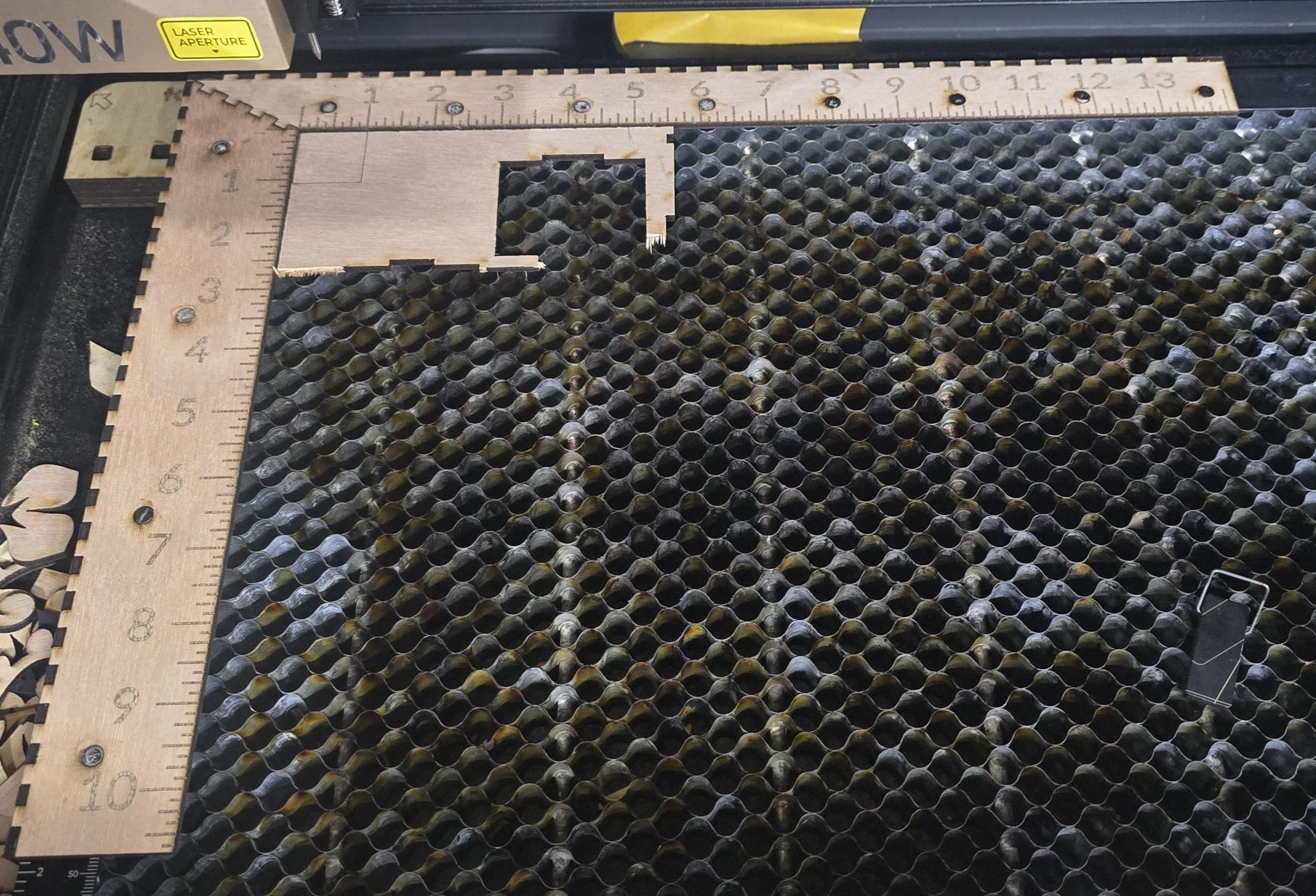

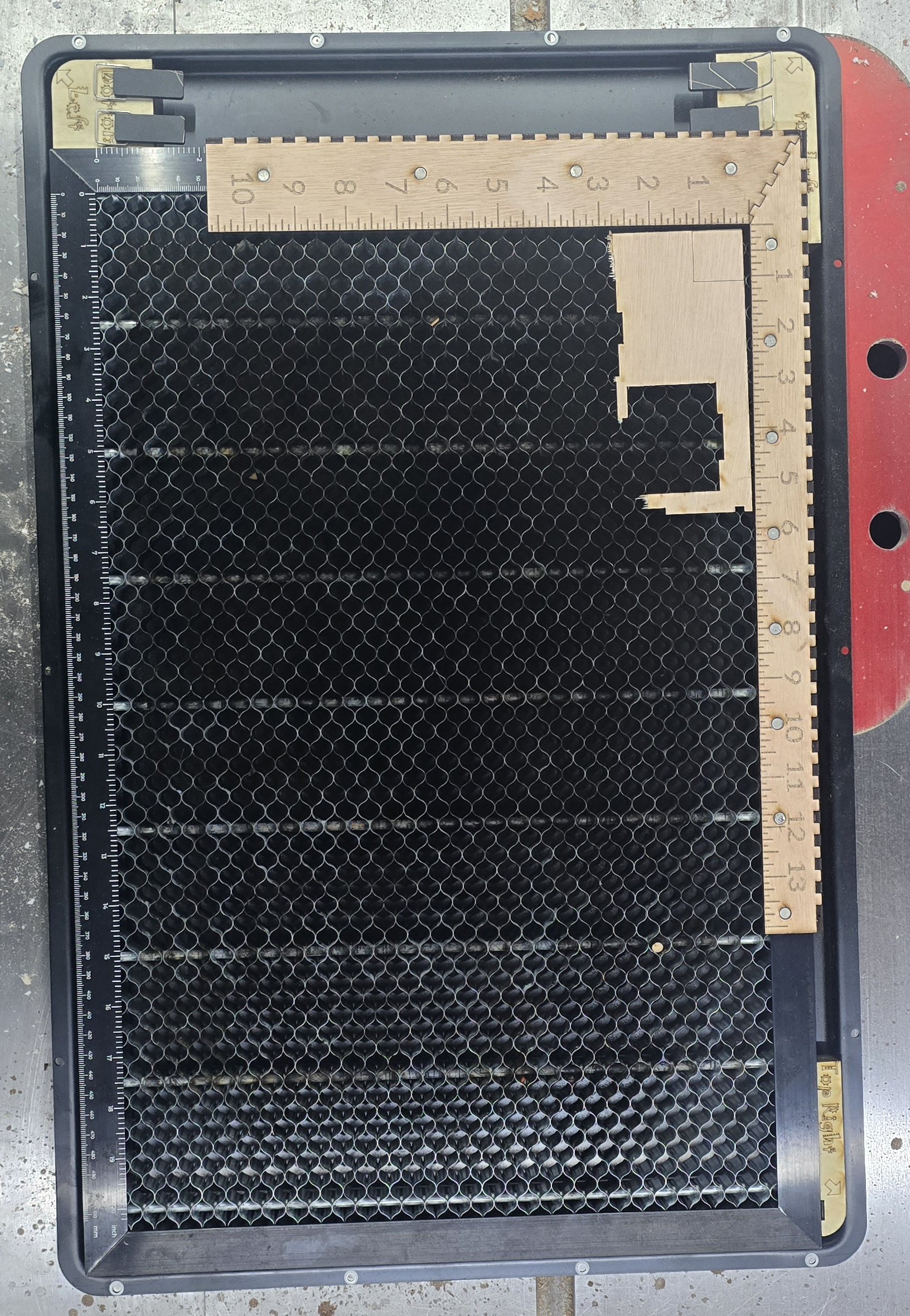

- Alignment components for the S1 tray and workspace
- Simple two-step instruction reference
Materials
- 1/8 inch plywood (stacked layers)
- Magnets (press-fit)
- Super glue or CA glue
- Sandpaper (for fine fit adjustment)
Tools
- xTool S1 laser
- xTool S1 honeycomb
- xTool S1 tray
- Created specifically for the xTool S1 honeycomb and tray system
- No plans required — this is a simple stacked glue-up
- Cut one left and one right (or top/bottom) piece and stack for height
- Six layers of 1/8 inch plywood were used in the example build
- If fit is loose, apply outward kerf offset to black pieces
- If fit is tight, adjust kerf inward slightly
- Green pieces indicate magnet holes and can be adjusted independently
- Snug fit is preferred; sanding can fine-tune the result

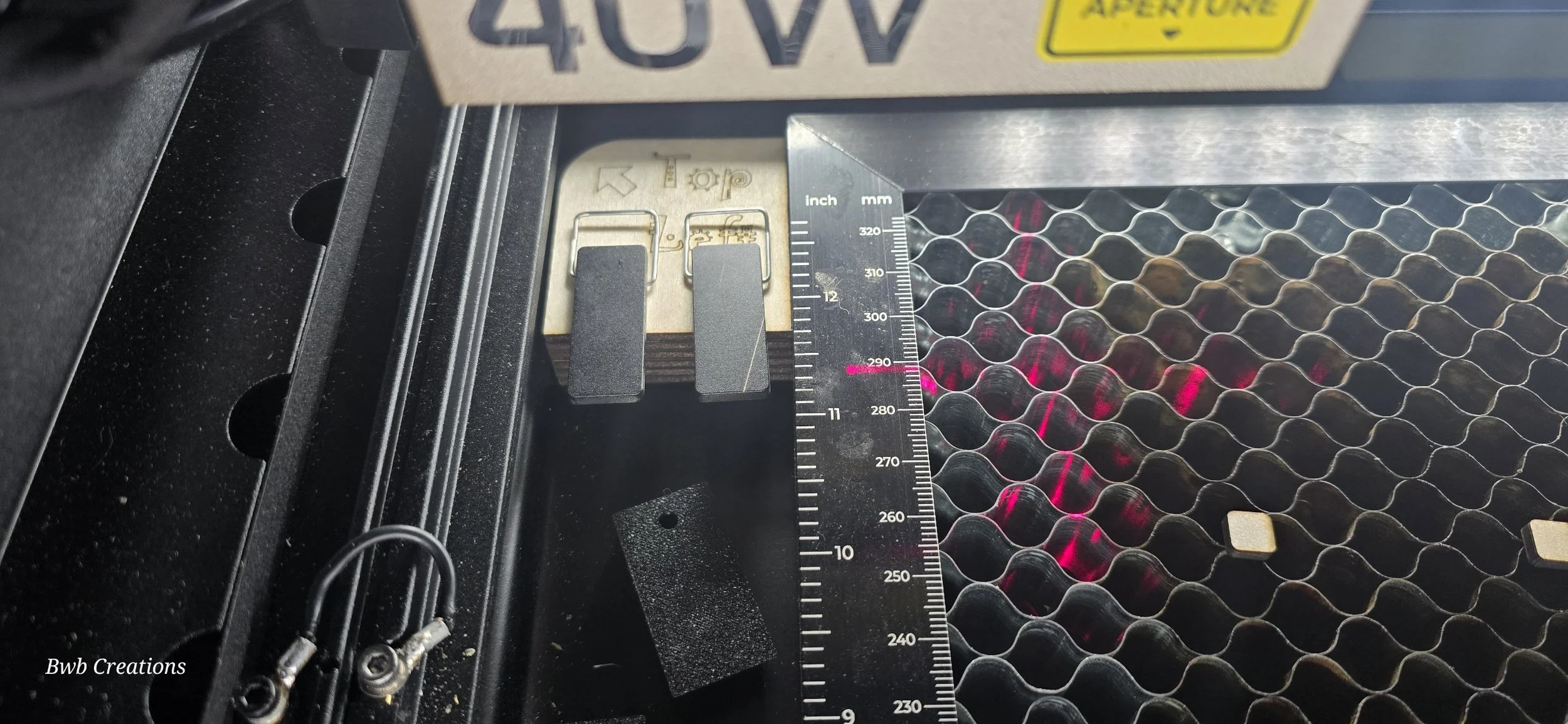

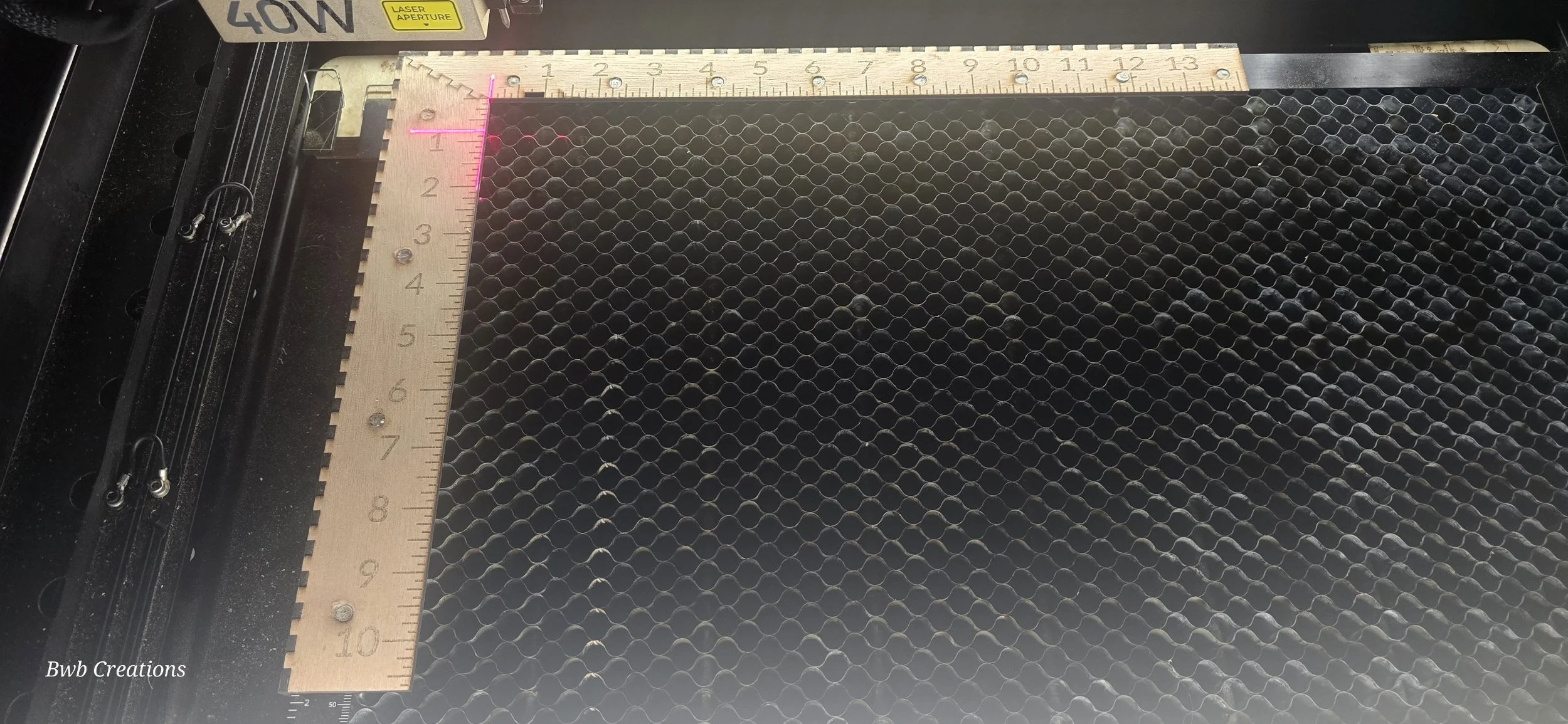

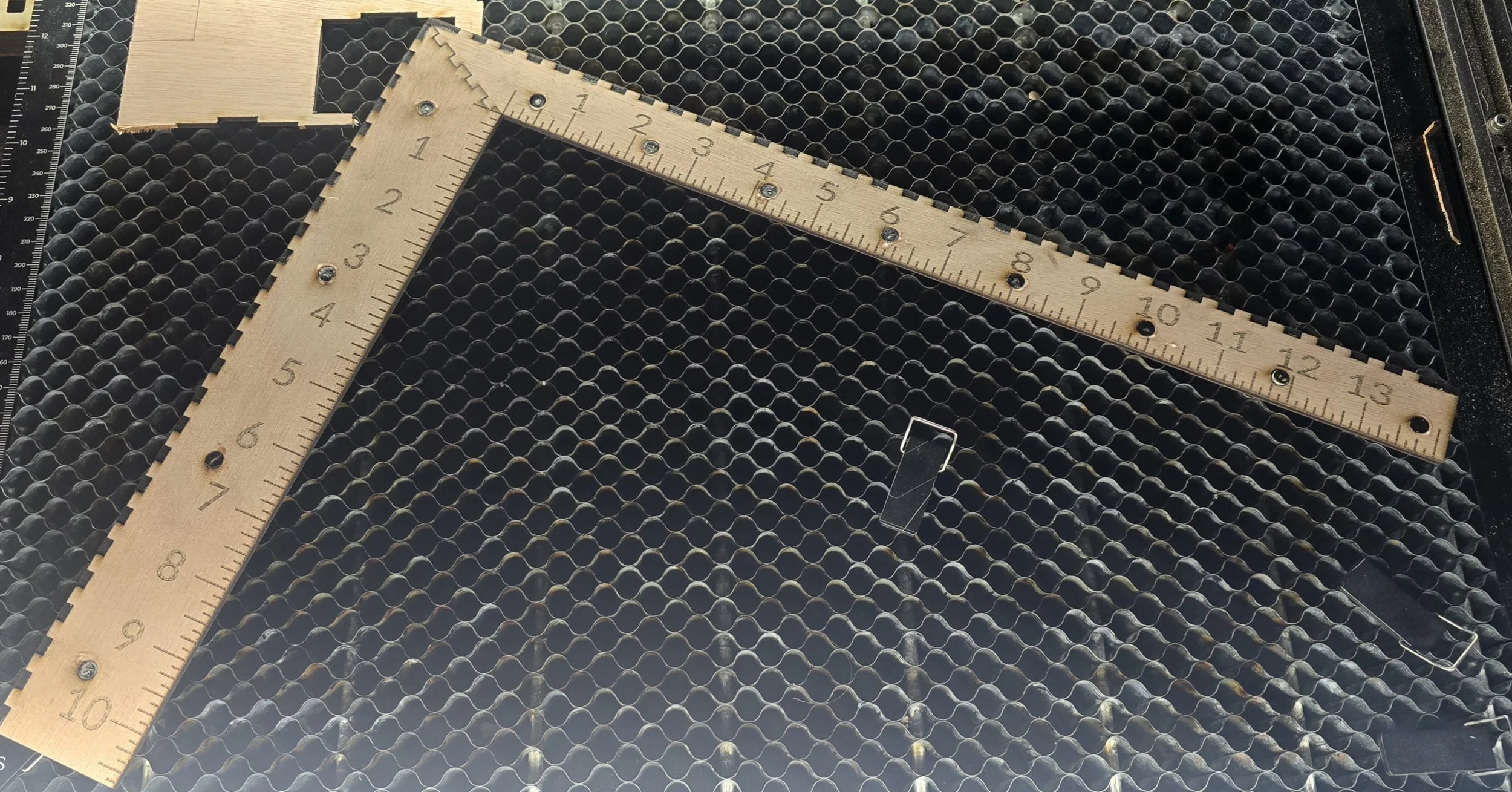

- Reference photos show honeycomb alignment versus on-screen markers
- Digital cut files for all alignment jig block pieces
- Honeycomb locking components sized for the xTool S1
- Tray and workspace alignment parts
- Instruction reference layout
- Digital files only — no physical item shipped
